Guide – How To Start – TinyProxy – Protected Proxy Server on CentOS 8.2 on Amazon

TinyProxy is a light-weight HTTP/HTTPS proxy for Ubuntu operating systems. Designed to be fast and yet small, it is an ideal solution to use in such cases as embedded deployments where a full featured HTTP proxy is required.

This is a quick deployment and ready-to-run image.
Simple and rapid installation. Easy to maintain.

The connection to TinyProxy protected Proxy server on CentOS 8.2. using Windows settings

1. To access the proxy server, you must specify a list of IP addresses in the Security Group. To do this, select your Instance, go to the “Security” section and click on the security group.

2. Click “Edit inbound rules”.

3. Click “Add rule” to add the port.

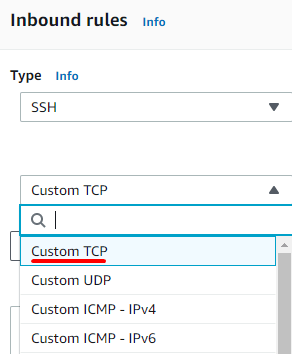

In the field that appears, select the option “Custom TCP Rule”

5. Select TCP In the “Protocol” field.
   Specify “Port Range” 8888.

In the Source field, enter the IP address access to which will be provided to connect to the proxy server. For example, you can specify your IP address, you can find it on the site https://www.myip.com/

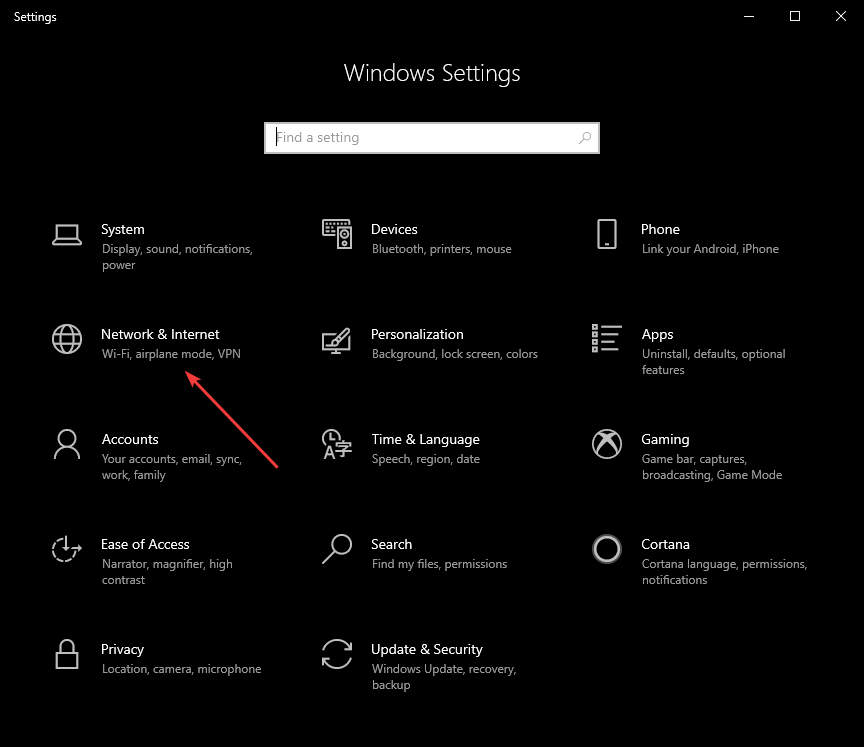

6. To use the proxy server through the built-in Windows tools, you must open the settings.

7. In Settings select Network & Internet.

8. Go to the “Proxy” section and set the “Use a proxy server” switch to On
9. In the Address field, enter the address of the VM, and in the Port field, specify 8888. Then click the Save button.

10. To check the connection to the proxy server, open the https://www.myip.com/ website in any browser and check if your IP address has changed.

Attention: There may be a problem that with enabled proxy, you will lose your Internet connection. To fix this problem, you should restart the proxy service manually.

1. To restart the proxy you should connect to the server via ssh. For example, you can connect to a VM via PuTTY –  Download.

To connect to the VM, you should generate a “Private Key” in advance. This can be done using the following instruction (by choosing the “file format:” option “.ppk” in point 3)

Guide – How To – Create and use Key Pair to connect to a VM

2. Go to the SSH section in the left panel and then to Auth.

3. In the “Auth” section, click “Browse” and specify the path to the .ppk file you received earlier.
4. Go to the home page of “Session”, enter the IP address of the VM and click “Open”.

5. In the opened console you will need to enter the login centos
6. Next, you should enter the following commands:

> sudo service tinyproxy stop

> sudo service tinyproxy start

To check the server status, enter the command:

> sudo service tinyproxy status
