SoftEther VPN Server Free VPN for Windows 2019 provides remote-access, resistance to highly-restricted firewall, Source IP address control list, and more.
This is a quick deployment and ready-to-run image.
Simple and rapid installation. Easy to maintain.
SoftEther VPN Server Free VPN for Windows 2019
First, you need to open UDP port 1194 in the properties of Amazon network settings.

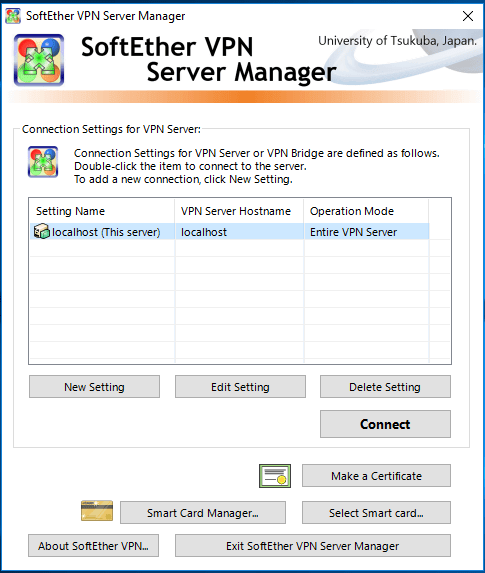

To start the VPN Server admin panel, you should open the app “SoftEther VPN Server Manager” on the desktop. Click “Connect” in the opened window of the app:
The default password is located in the AdminPassword_softether file on the desktop
When you first enter the application, enter the default password into the authorization window.
To work with VPN, first, you should add a user to the app.
For this you need:
- Click on the “Manage Virtual Hub” button:

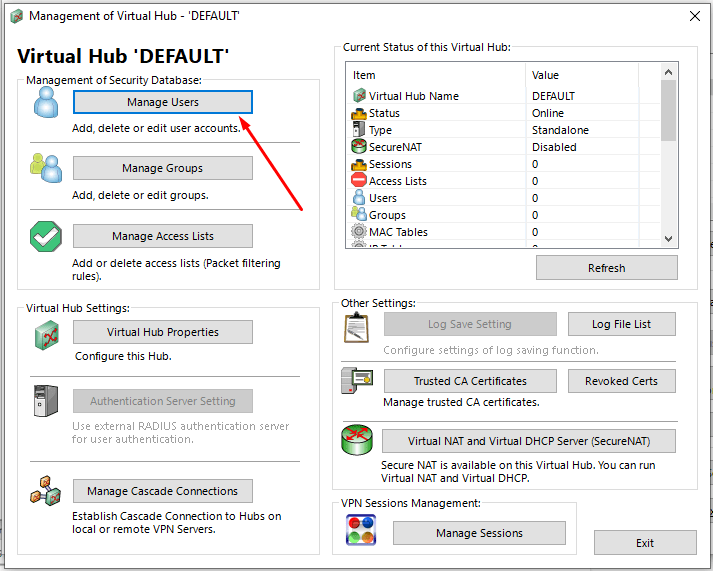

- Then click on the “Manage Users” button:
- One user is already created in “Manage Users” and you can work with it, the default user data:
To change the default password, select the user and click “Edit”

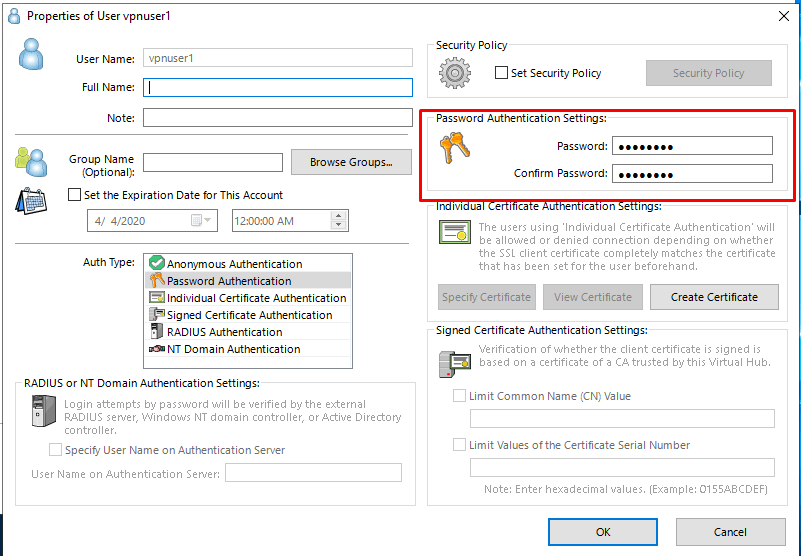

- And change data in the “Password” field:

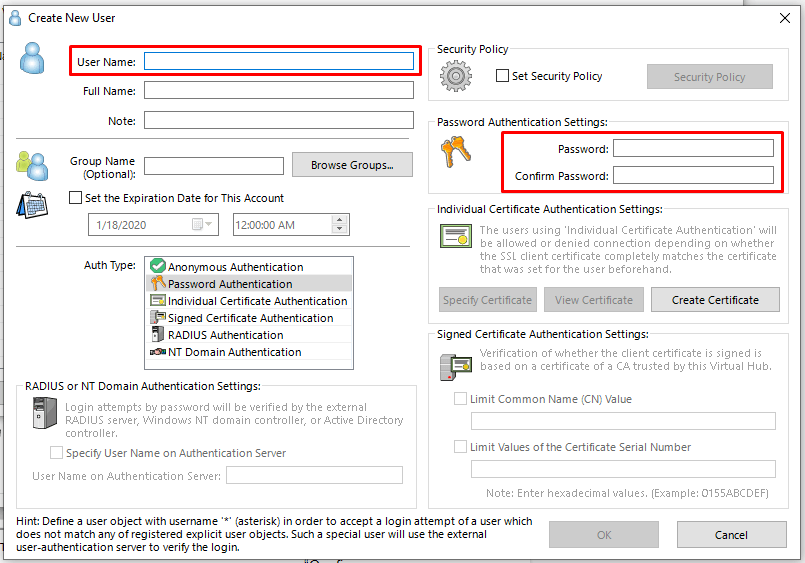

- Or, If you want to create a new user, click “New”:
- It’s necessary to insert the name of the user into the “User Name” field, type the password into the “Password” field and verify it by re-entering the password into the “Confirm Password” field.
- After the data were entered, click “OK”.
The instruction for the customization of the VPN Client
To customize the VPN Client, first, you need to know the server IP address. You can find it in your personal account of Amazon. (You need to select the virtual machine from the list. By clicking the item “Overview”, your IP is displayed in the line “Public IP Address”).
After that, you need the OpenVPN Client for the work. Go to the site: https://openvpn.net/community-downloads/ and download the installer in the “.exe” format, depending on your OS Windows:
After the downloading of the installer is finished, you should run it.

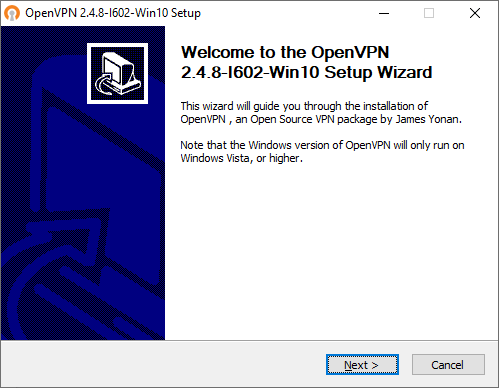

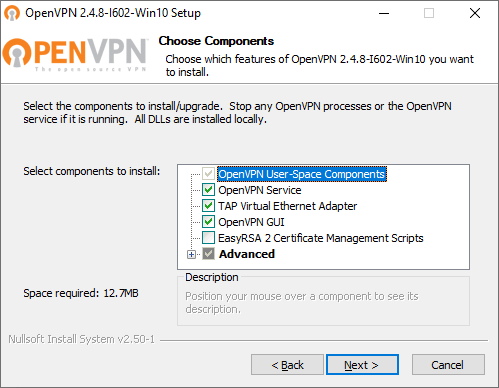

In the opened window of the OpenVPN installer click on the “Next” button:

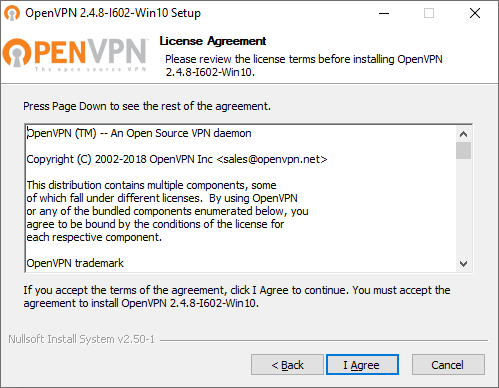

After that click “I Agree”:
Then click “Install”:
After the installation progress is finished, click “Next”:
And then click “Finish”.

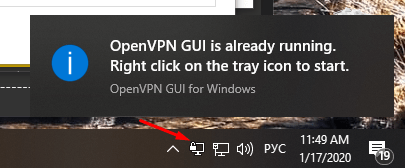

When you try to start OpenVPN after the installation, the pop-up message of the absence of the configuration files appears:
In order for OpenVPN to work, you need to add these configuration files for the app by hand. You can create them in the “SoftEther VPN Server Manager” app. For this, you need:
- Run the “SoftEther VPN Server Manager”.
- Click “Connect” in the opened window of the app.

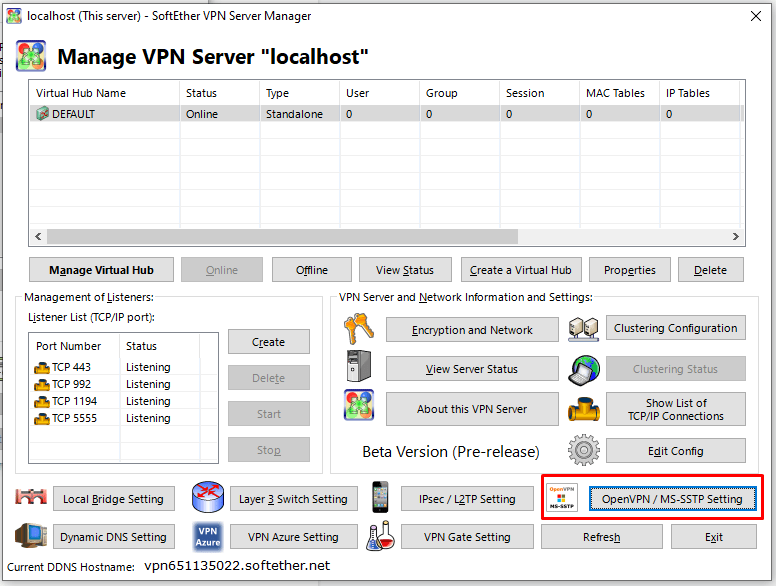

- Click on the “OpenVPN / MS-SSTP Settings” button.
- Click on the “Generate a Sample Configuration File for OpenVPN Clients” button.

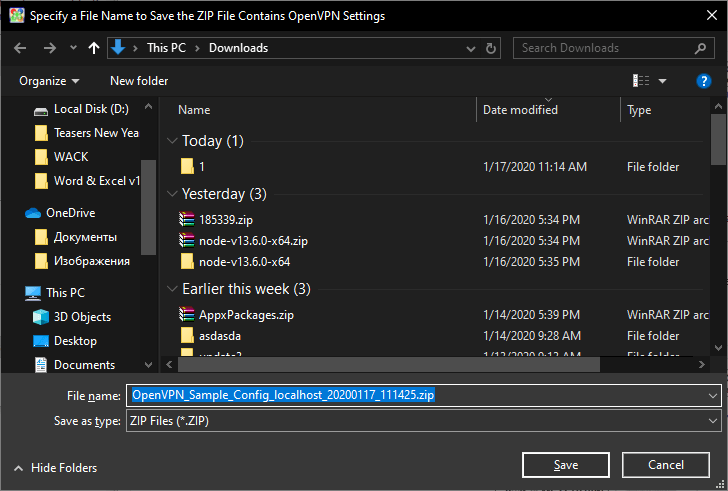

- When the window of the Windows Explorer is opened, select the path to save the archive:
- There are the next files in the saved archive:

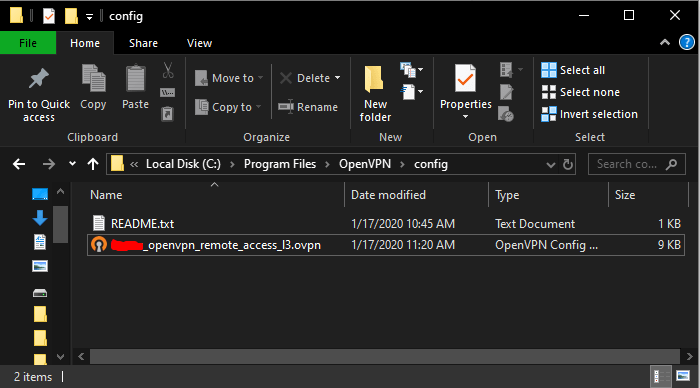

- You should transmit the file named “…_openvpn_remote_access_l3” by the path of installation of the “OpenVPN”, in this case (since the standard path was selected) this is “C:\Program Files\OpenVPN\config”.
Now the OpenVPN is ready for work and you can run it. After it was started, the app is displayed in the system tray in the form of the monitor icon with the lock.
To connect to VPN you should click the icon with the monitor with the lock twice.

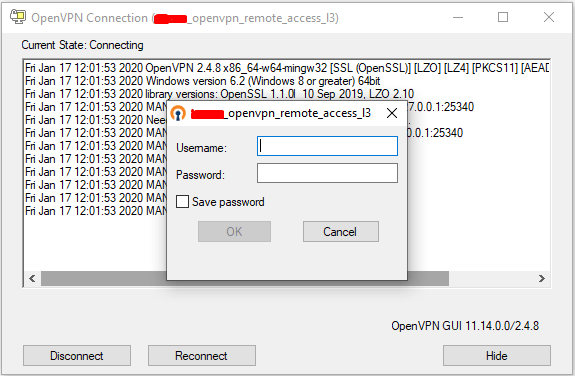

The next windows will be opened:
In the fields “Username” and “Password” it’s necessary to enter the name and the password which were added to the “SoftEther VPN Server Manager” and after that click “OK” to connect to the VPN server.
Now your external IP address has changed and you are using the Internet through the VPN server of the virtual machine.
