Guide – How To Start – Advanced SoftEther VPN Server for Windows 2019 on Amazon

SoftEther VPN is an optimum alternative to OpenVPN and Microsoft’s VPN servers. SoftEther VPN has a clone-function of OpenVPN Server. You can integrate from OpenVPN to SoftEther VPN smoothly. SoftEther VPN is faster than OpenVPN. SoftEther VPN also supports Microsoft SSTP VPN for Windows Vista / 7 / 8. No more need to pay expensive charges for Windows Server license for Remote-Access VPN function.

This is a quick deployment and ready-to-run image.
Simple and rapid installation. Easy to maintain.

SoftEther Advanced VPN Server Free VPN for Windows 2019

First, to connect to SoftEther Advanced, you should open port 1194 by the TCP and UDP Protocol in the network properties on Amazon Firewall.

Advanced version includes the following add-ons:

  • Doubled DHCP pool
  • Provided server configuration backup, located on the path – C:\backup

To start the VPN Server admin panel, you should open the app “SoftEther VPN Server Manager” on the desktop. Click “Connect” in the opened window of the app:

        When you first enter the application, enter the password “softpassword” into the authorization window.

To work with VPN, at first you should add a user in the app.

For this you need:

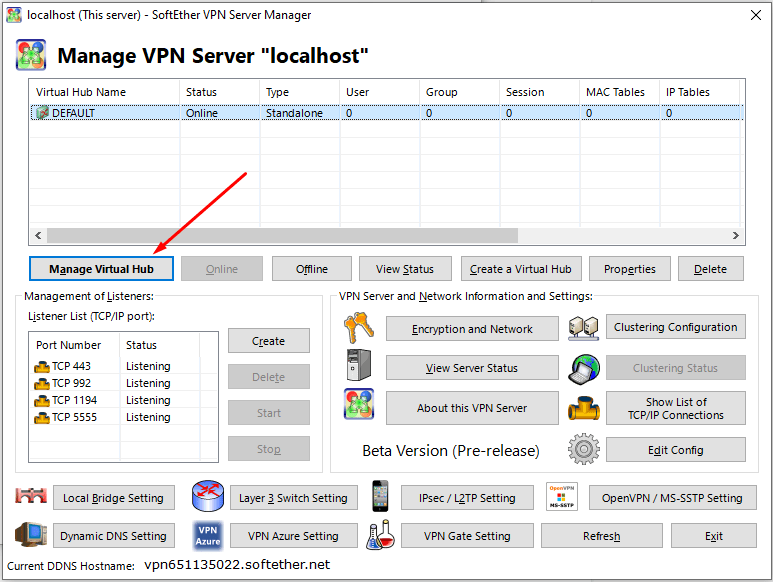

  1. Click on the “Manage Virtual Hub” button:

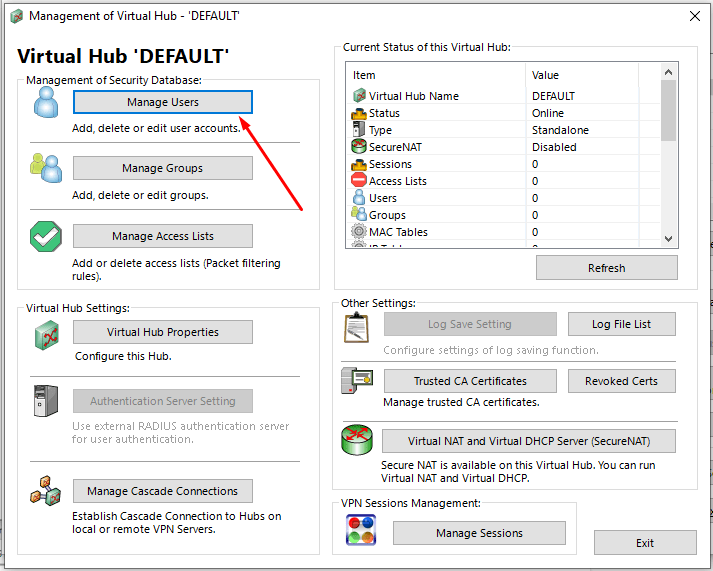

  1. Then click on the “Manage Users” button:
  1. One user is already created in “Manage Users” and you can work with it, the default user data:

Login: “vpnuser1”

Password: “Uaii9013ghfd”

To change the default password, select the user and click “Edit”

  1. And change data in the “Password” field:

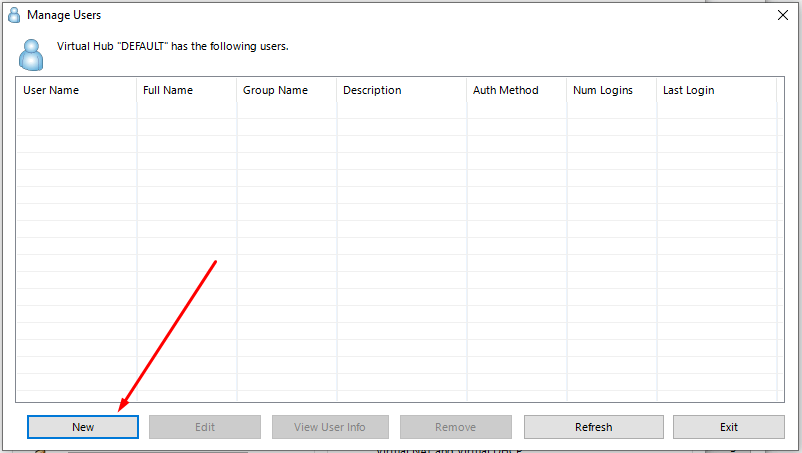

  1. Or, If you want to create a new user, click  “New”:
  1. It’s necessary to insert the name of the user into the “User Name” field, type the password into the “Password” field and verify it by re-entering the password into the “Confirm Password” field.
  1. After the data were entered, click “OK”.

The instruction for the customization of the VPN Client

To customize the VPN Client, first you need to know the server IP address. You can find it in the personal account of Amazon. (You need to select the virtual machine from the list. By clicking the item “Overview”, your IP is displayed in the line of “Public IP Address”).

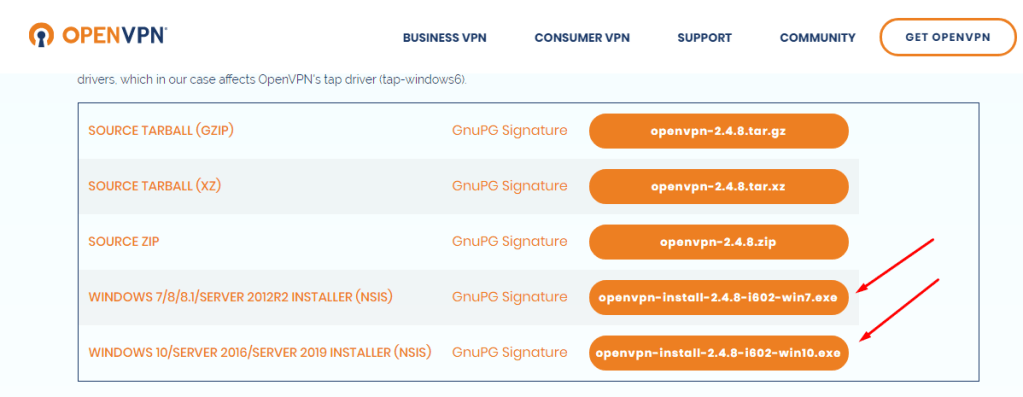

After that, you need the OpenVPN Client for the work. Go to site: and download the installer in the “.exe” format, depending on your OS Windows:

After the downloading of the installer is finished, you should run it.

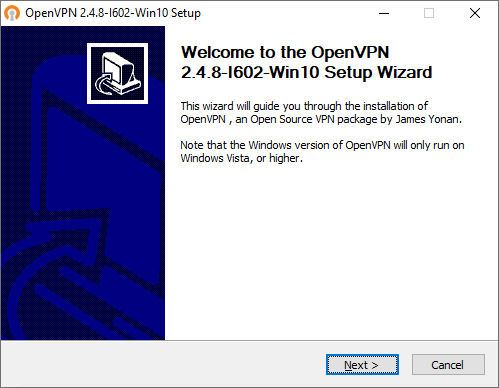

In the opened window of the OpenVPN  installer click on the “Next” button:

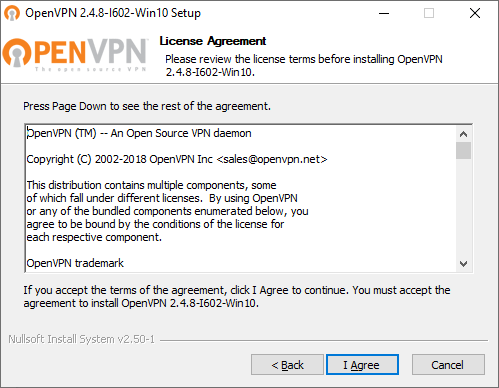

After that click “I Agree”:

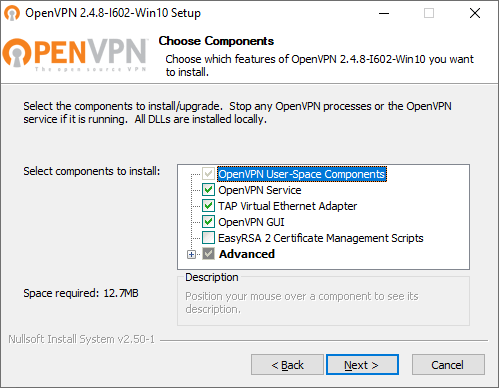

Click “Next”:

Then click “Install”:

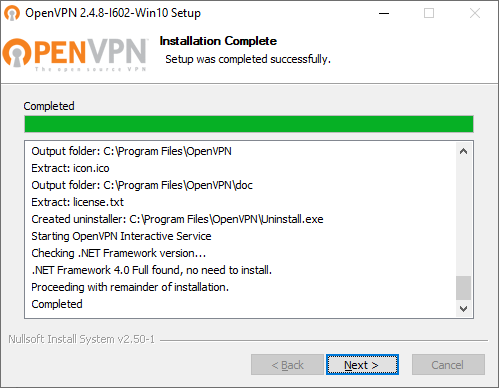

After the installation progress is finished, click “Next”:

And then click “Finish”.

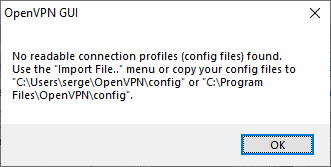

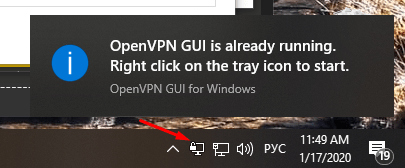

When you try to start OpenVPN after the installation, the pop-up message of the absence of the configuration files appears:

In order for OpenVPN work, you need to add these configuration files for the app by hand. You can create them in the “SoftEther VPN Server Manager” app. For this you need:

  1. Run the “SoftEther VPN Server Manager”.
  2. Click “Connect” in the opened window of the app.

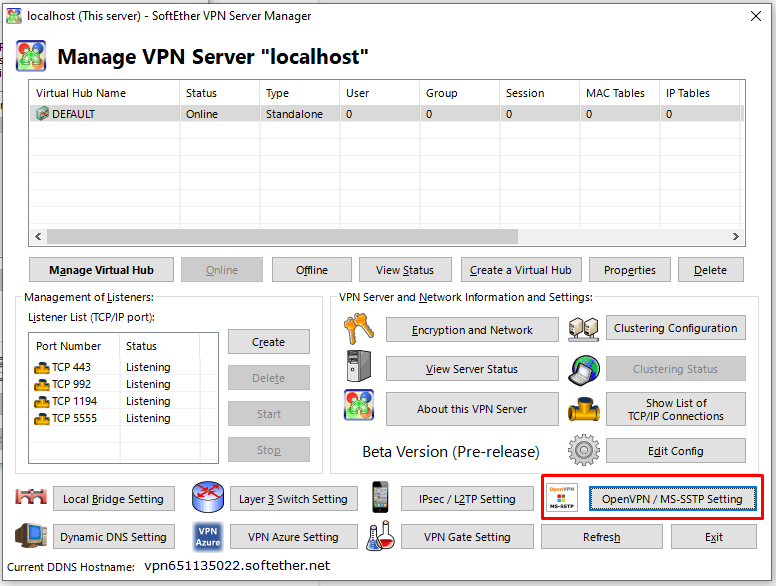

  3. Click on the “OpenVPN / MS-SSTP Settings” button.

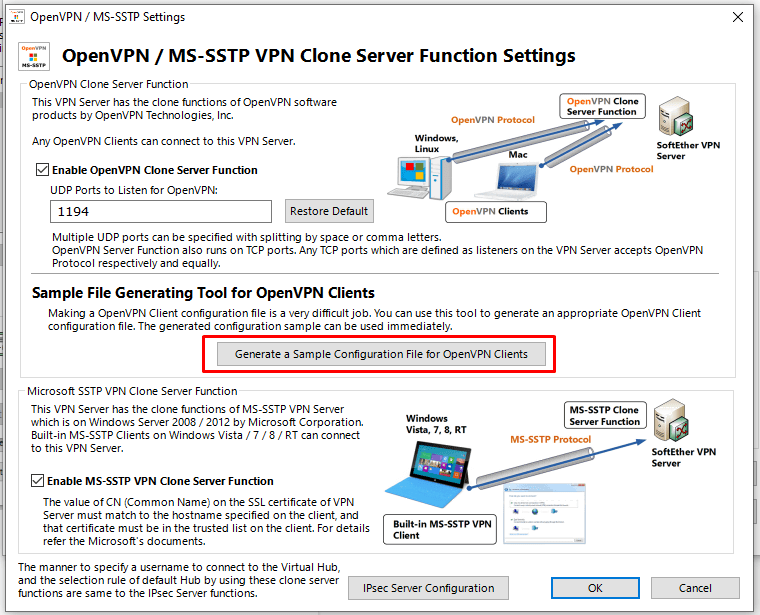

  1. Click on the “Generate a Sample Configuration File for OpenVPN Clients” button.

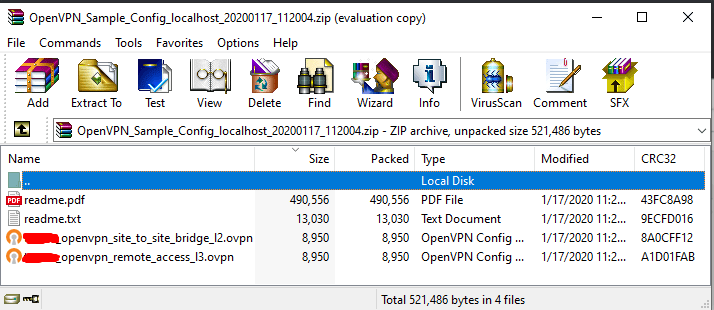

  1. When the window of the Windows Explorer is opened, select the path to save the archive:

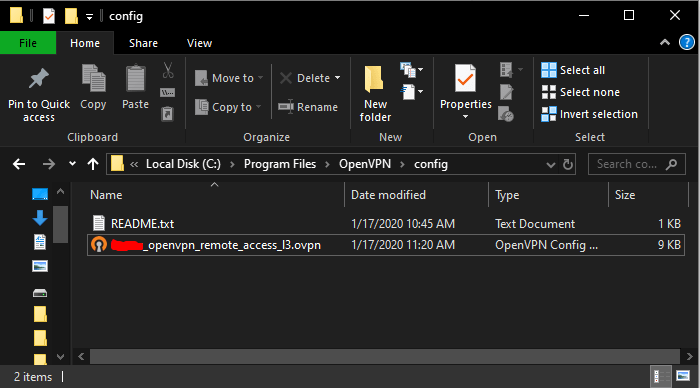

  1. You should transmit the file named “…_openvpn_remote_access_l3” by the path of installation of the “OpenVPN”, in this case (since the standard path was selected) this is “C:\Program Files\OpenVPN\config”.

Now OpenVPN is ready for work and you can run it. After it was started, the app is displayed in the system tray in the form of the monitor icon with the lock.

        To connect to VPN you should click the icon with the monitor with the lock twice.

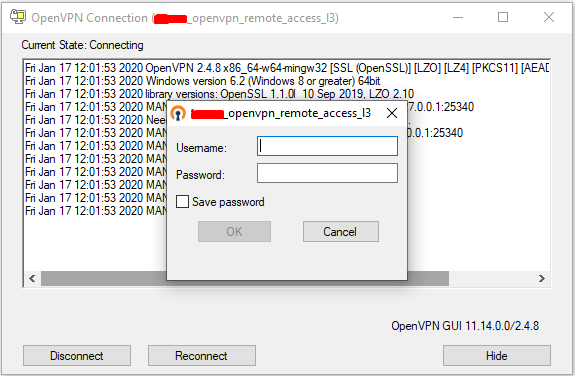

The next windows will be opened:

        In the fields “Username” and “Password” it’s necessary to enter the name and the password which were added to the “SoftEther VPN Server Manager” and after that click “OK” to connect to the VPN server.

Now your external IP address has changed and you are using the Internet through the VPN server of the virtual machine.
